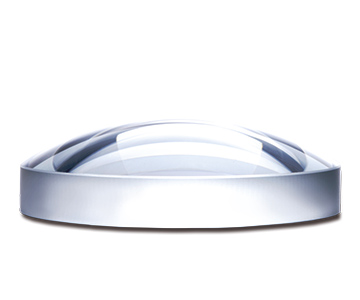

非球面镜片
收藏
￥10000.00
收藏
选择 型号1、型号2
- 产品详情
| Product Code | Material | Diameter[mm] | EFL[mm] | NA | f/d | Design wave[nm] | RMSi[nm] | Wavefront RMS[nm] |
| AHL10-08-P-U-780 | S-LAH64 | 10.0 | 8.0 | 0.55 | 0.8 | 780 | 500 | ≤390 |
| AHL10-08-U-U-780 | S-LAH64 | 10.0 | 8.0 | 0.55 | 0.8 | 780 | 100 | ≤78 |
| AHL12-10-P-U-780 | S-LAH64 | 12.5 | 10.0 | 0.55 | 0.8 | 780 | 500 | ≤390 |
| AHL12-10-U-U-780 | S-LAH64 | 12.5 | 10.0 | 0.55 | 0.8 | 780 | 100 | ≤78 |
| AHL15-12-P-U-780 | S-LAH64 | 15.0 | 12.0 | 0.55 | 0.8 | 780 | 500 | ≤390 |
| AHL15-12-U-U-780 | S-LAH64 | 15.0 | 12.0 | 0.55 | 0.8 | 780 | 100 | ≤78 |
| AHL18-15-P-U-780 | S-LAH64 | 18.0 | 15.0 | 0.53 | 0.83 | 780 | 500 | ≤390 |
| AHL18-15-U-U-780 | S-LAH64 | 18.0 | 15.0 | 0.53 | 0.83 | 780 | 100 | ≤78 |
| AHL20-18-P-U-780 | S-LAH64 | 20.0 | 18.0 | 0.49 | 0.9 | 780 | 500 | ≤390 |
| AHL20-18-U-U-780 | S-LAH64 | 20.0 | 18.0 | 0.49 | 0.9 | 780 | 100 | ≤78 |
| AHL25-20-P-U-780 | S-LAH64 | 25.0 | 20.0 | 0.54 | 0.8 | 780 | 500 | ≤390 |
| AHL25-20-U-U-780 | S-LAH64 | 25.0 | 20.0 | 0.54 | 0.8 | 780 | 100 | ≤78 |
| AHL30-26-P-U-780 | S-LAH64 | 30.0 | 26.0 | 0.52 | 0.87 | 780 | 500 | ≤390 |
| AHL30-26-U-U-780 | S-LAH64 | 30.0 | 26.0 | 0.52 | 0.87 | 780 | 100 | ≤78 |
| AHL45-32-P-U-780 | S-LAH64 | 45.0 | 32.0 | 0.61 | 0.71 | 780 | 500 | ≤390 |
| AHL45-32-U-U-780 | S-LAH64 | 45.0 | 32.0 | 0.61 | 0.71 | 780 | 100 | ≤78 |
| AHL50-40-P-U-780 | S-LAH64 | 50.0 | 40.0 | 0.55 | 0.8 | 780 | 500 | ≤390 |
| AHL50-40-U-U-780 | S-LAH64 | 50.0 | 40.0 | 0.55 | 0.8 | 780 | 100 | ≤78 |
| ALL12-25-P-U-780 | N-BK7 | 12.5 | 25.0 | 0.23 | 2.0 | 780 | 500 | ≤255 |
| ALL12-25-U-U-780 | N-BK7 | 12.5 | 25.0 | 0.23 | 2.0 | 780 | 100 | ≤51 |
| ALL25-50-P-U-780 | N-BK7 | 25.0 | 50.0 | 0.23 | 2.0 | 780 | 500 | ≤255 |
| ALL25-50-U-U-780 | N-BK7 | 25.0 | 50.0 | 0.23 | 2.0 | 780 | 100 | ≤51 |
| ALL50-100-P-U-780 | N-BK7 | 50.0 | 100.0 | 0.24 | 2.0 | 780 | 500 | ≤255 |
| ALL50-100-U-U-780 | N-BK7 | 50.0 | 100.0 | 0.24 | 2.0 | 780 | 100 | ≤51 |
| ALL75-60-P-U-780 | N-BK7 | 75.0 | 60.0 | 0.62 | 0.8 | 780 | 500 | ≤255 |
| ALL75-150-P-U-780 | N-BK7 | 75.0 | 150.0 | 0.23 | 2.0 | 780 | 500 | ≤255 |
| ALL100-100-P-U-780 | N-BK7 | 100.0 | 100.0 | 0.48 | 1.0 | 780 | 500 | ≤255 |
| ALL100-200-P-U-780 | N-BK7 | 100.0 | 200.0 | 0.23 | 2.0 | 780 | 500 | ≤255 |
| AFL12-10-P-U-355 | Fused Silica | 12.5 | 10.0 | 0.58 | 0.833 | 355 | 500 | ≤235 |
| AFL12-10-U-U-355 | Fused Silica | 12.5 | 10.0 | 0.58 | 0.833 | 355 | 300 | ≤140 |
| AFL12-15-P-U-285 | Fused Silica | 12.5 | 15.0 | 0.39 | 1.2 | 285 | 500 | ≤235 |
| AFL12-15-U-U-285 | Fused Silica | 12.5 | 15.0 | 0.39 | 1.2 | 285 | 300 | ≤140 |
| AFL12-20-P-U-285 | Fused Silica | 12.5 | 20.0 | 0.29 | 1.6 | 285 | 500 | ≤235 |
| AFL12-20-U-U-285 | Fused Silica | 12.5 | 20.0 | 0.29 | 1.6 | 285 | 300 | ≤140 |
| AFL25-17-P-U-355 | Fused Silica | 25.0 | 17.5 | 0.64 | 0.7 | 355 | 500 | ≤235 |
| AFL25-17-U-U-355 | Fused Silica | 25.0 | 17.5 | 0.64 | 0.7 | 355 | 300 | ≤140 |
| AFL25-20-P-U-355 | Fused Silica | 25.0 | 20.0 | 0.56 | 0.8 | 355 | 500 | ≤235 |
| AFL25-20-U-U-355 | Fused Silica | 25.0 | 20.0 | 0.56 | 0.8 | 355 | 300 | ≤140 |
| AFL25-25-P-U-285 | Fused Silica | 25.0 | 25.0 | 0.48 | 1.0 | 285 | 500 | ≤235 |
| AFL25-25-U-U-285 | Fused Silica | 25.0 | 25.0 | 0.48 | 1.0 | 285 | 300 | ≤140 |
| AFL25-30-P-U-285 | Fused Silica | 25.0 | 30.0 | 0.39 | 1.2 | 285 | 500 | ≤235 |
| AFL25-30-U-U-285 | Fused Silica | 25.0 | 30.0 | 0.39 | 1.2 | 285 | 300 | ≤140 |
| AFL25-40-P-U-285 | Fused Silica | 25.0 | 40.0 | 0.29 | 1.6 | 285 | 500 | ≤235 |
| AFL25-40-U-U-285 | Fused Silica | 25.0 | 40.0 | 0.29 | 1.6 | 285 | 300 | ≤140 |
| AFL25-50-P-U-355 | Fused Silica | 25.0 | 50.0 | 0.23 | 2.0 | 355 | 500 | ≤235 |
| AFL25-50-U-U-355 | Fused Silica | 25.0 | 50.0 | 0.23 | 2.0 | 355 | 300 | ≤140 |
| AFL25-50-D-U-355 | Fused Silica | 25.0 | 50.0 | 0.23 | 2.0 | 355 | 20 | ≤10 |
| AFL25-75-P-U-355 | Fused Silica | 25.0 | 75.0 | 0.15 | 3.0 | 355 | 500 | ≤235 |
| AFL25-75-U-U-355 | Fused Silica | 25.0 | 75.0 | 0.15 | 3.0 | 355 | 300 | ≤140 |
| AFL25-75-D-U-355 | Fused Silica | 25.0 | 75.0 | 0.15 | 3.0 | 355 | 20 | ≤10 |
| AFL25-100-P-U-355 | Fused Silica | 25.0 | 100.0 | 0.11 | 4.0 | 355 | 500 | ≤235 |
| AFL25-100-U-U-355 | Fused Silica | 25.0 | 100.0 | 0.11 | 4.0 | 355 | 300 | ≤140 |
| AFL25-100-D-U-355 | Fused Silica | 25.0 | 100.0 | 0.11 | 4.0 | 355 | 20 | ≤10 |
| AFL50-40-P-U-355 | Fused Silica | 50.0 | 40.0 | 0.56 | 0.8 | 355 | 500 | ≤235 |
| AFL50-40-U-U-355 | Fused Silica | 50.0 | 40.0 | 0.56 | 0.8 | 355 | 300 | ≤140 |
| AFL50-50-P-U-355 | Fused Silica | 50.0 | 50.0 | 0.48 | 1.0 | 355 | 500 | ≤235 |
| AFL50-50-U-U-355 | Fused Silica | 50.0 | 50.0 | 0.48 | 1.0 | 355 | 300 | ≤140 |
| AFL50-60-P-U-285 | Fused Silica | 50.0 | 60.0 | 0.39 | 1.2 | 285 | 500 | ≤235 |
| AFL50-60-U-U-285 | Fused Silica | 50.0 | 60.0 | 0.39 | 1.2 | 285 | 300 | ≤140 |
| AFL50-80-P-U-285 | Fused Silica | 50.0 | 80.0 | 0.29 | 1.6 | 285 | 500 | ≤235 |
| AFL50-80-U-U-285 | Fused Silica | 50.0 | 80.0 | 0.29 | 1.6 | 285 | 300 | ≤140 |
| AFL50-100-P-U-355 | Fused Silica | 50.0 | 100.0 | 0.23 | 2.0 | 355 | 500 | ≤235 |
| AFL50-100-U-U-355 | Fused Silica | 50.0 | 100.0 | 0.23 | 2.0 | 355 | 300 | ≤140 |
| AHM12-10-S-U | S-LAH64 | 12.5 | 10.0 | 0.55 | 0.8 | 780 | 300 | ≤78 |
| AHM15-12-U-U-780 | S-LAH64 | 15.0 | 12.0 | 0.55 | 0.8 | 780 | 300 | ≤78 |
| AHM18-15-U-U-780 | S-LAH64 | 18.0 | 15.0 | 0.53 | 0.83 | 780 | 300 | ≤78 |
| AHM20-18-U-U-780 | S-LAH64 | 20.0 | 18.0 | 0.49 | 0.9 | 780 | 300 | ≤78 |
| AHM25-20-U-U-780 | S-LAH64 | 25.0 | 20.0 | 0.54 | 0.8 | 780 | 300 | ≤78 |
| ALM12-25-U-U-780 | N-BK7 | 12.5 | 25.0 | 0.23 | 2.0 | 780 | 300 | ≤51 |
| ALM25-50-U-U-780 | N-BK7 | 25.0 | 50.0 | 0.23 | 2.0 | 780 | 300 | ≤51 |
| AFM12-15-U-U-285 | Fused Silica | 12.5 | 15.0 | 0.39 | 1.2 | 285 | 300 | ≤140 |
| AFM12-20-U-U-285 | Fused Silica | 12.5 | 20.0 | 0.29 | 1.6 | 285 | 300 | ≤140 |
| AFM25-25-U-U-285 | Fused Silica | 25.0 | 25.0 | 0.48 | 1.0 | 285 | 300 | ≤140 |
| AFM25-30-U-U-285 | Fused Silica | 25.0 | 30.0 | 0.39 | 1.2 | 285 | 300 | ≤140 |
| AFM25-40-U-U-285 | Fused Silica | 25.0 | 40.0 | 0.29 | 1.6 | 285 | 300 | ≤140 |
| AFM25-50-U-U-355 | Fused Silica | 25.0 | 50.0 | 0.23 | 2.0 | 355 | 300 | ≤140 |
| ALM25-50-D-U-355 | Fused Silica | 25.0 | 50.0 | 0.23 | 2.0 | 355 | 20 | ≤10 |
| AFM25-75-U-U-355 | Fused Silica | 25.0 | 75.0 | 0.15 | 3.0 | 355 | 300 | ≤140 |
| AFM25-75-D-U-355 | Fused Silica | 25.0 | 75.0 | 0.15 | 3.0 | 355 | 20 | ≤10 |
| AFM25-100-U-U-355 | Fused Silica | 25.0 | 100.0 | 0.11 | 4.0 | 355 | 300 | ≤140 |
| ALM25-100-D-U-355 | Fused Silica | 25.0 | 100.0 | 0.11 | 4.0 | 355 | 20 | ≤10 |
