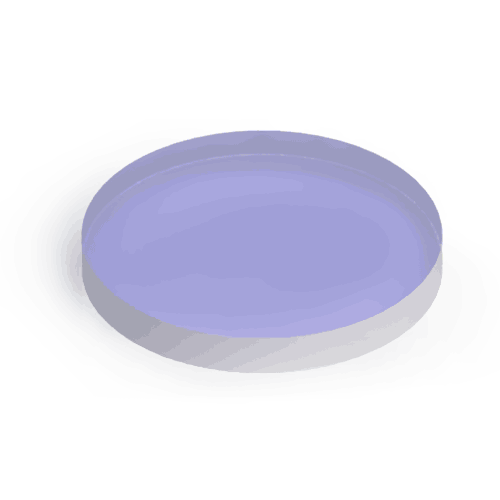

激光窗口镜片
收藏
￥1200.00
收藏
选择 型号
- 产品详情
主要参数：
| 主要参数 | 具体数据 |
| 材料 | Fused silica or k9 |
| 尺寸公差 | +0/-0.2mm |
| 厚度公差 | ±0.2mm |
| 面型 | λ/10@632.8nm in Dia. 25.4mm |
| 表面光洁度 | ＜0.2nm(Ra) |
| 镀膜 | Tavg>99.9% @ single wavelength; Tavg >99.8%@ two wavelength; Tavg >99.5%@ three wavelength; |
| 损伤阈值 | 10J/cm2, 10ns, 10Hz@1064nm |
主要型号：
| Part number | Wavelength[nm] | Diameter[mm] | Thickness[mm] | Coating | Material | Note |
| P001-0355 | 355 | 25.4 | 3.0 | T＞99.9@355nm | FS | Mirror |
| P002-0355 | 355 | 30.0 | 3.0 | T＞99.9@355nm | FS | Mirror |
| P003-0355 | 355 | 50.8 | 3.0 | T＞99.9@355nm | FS | Mirror |
| P001-0532 | 532 | 25.4 | 3.0 | T＞99.9@532nm | FS | Mirror |
| P002-0532 | 532 | 25.4 | 3.0 | T＞99.9@532nm | FS | Mirror |
| P003-0532 | 532 | 50.8 | 3.0 | T＞99.9@532nm | FS | Mirror |
| P001-1064 | 1064 | 30.0 | 3.0 | T＞99.9@1064nm | FS/K9 | Mirror |
| P002-1064 | 1064 | 30.0 | 3.0 | T＞99.9@1064nm | FS/K9 | Mirror |
| P003-1064 | 1064 | 50.8 | 3.0 | T＞99.9@1064nm | FS/K9 | Mirror |
| P004-0355 | 355 | 260*260 | 6.0 | T＞99.9@355nm | FS | Window |
| P004-0532-0808 | 532&808 | 240*240 | 6.0 | T＞99.9@532&808nm | FS | Window |
| P004-0532-0808 | 532&635&808 | 240*240 | 6.0 | T＞99.9@532&635&808nm | FS | Window |
