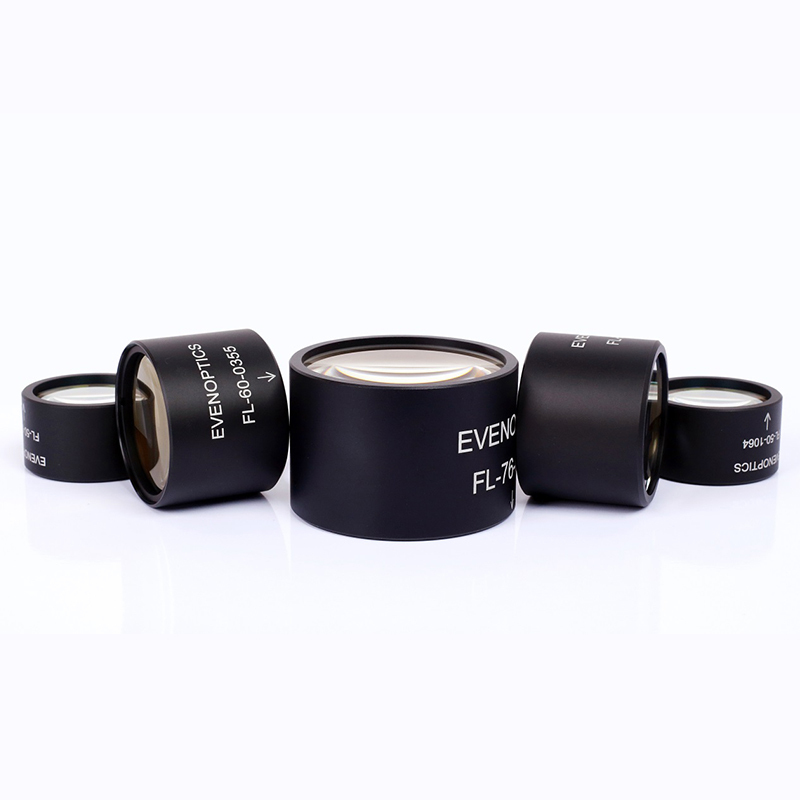

绿光聚焦镜
收藏
￥8000.00
收藏
选择 型号
- 产品详情
Part number | Materia | Wavelength [nm] | EFL [mm] | Length [mm] | Max. input beam-Ø [mm] | Numerical Aperture | Working distance[mm] | Outside-Ø [mm] | Thread |
| VIS-20-0532-FS | FS | 532 | 10 | 38 | 12 | 0.29 | 4.7 | 26 | M20.32 |
| VIS-15-0532-FS | FS | 532 | 15 | 38 | 12 | 0.39 | 12 | 26 | M20.32 |
| VIS-10-0532-FS | FS | 532 | 20 | 38 | 12 | 0.58 | 17.4 | 26 | M20.32 |
| VIS-25-0532 | FS | 532 | 8 | 38 | 10 | 0.55 | 4.5 | 26 | M20.32 |
| VIS-20-0532 | FS | 532 | 10 | 38 | 12.5 | 0.55 | 6.2 | 26 | M20.32 |
| VIS-16-0532 | FS | 532 | 12 | 38 | 15 | 0.55 | 7.6 | 26 | M20.32 |
| VIS-15-0532 | FS | 532 | 15 | 38 | 18 | 0.53 | 10 | 26 | M20.32 |
FL-30-0532 | FS | 532 | 29.8 | 11 | 14 | 0.23 | 25 | 20 | 20 |
FL-58-0532 | FS | 532 | 58 | 24.6 | 34 | 0.29 | 47.7 | 41 | 41 |
FL-76-0532 | FS | 532 | 76.1 | 36.0 | 48.0 | 0.32 | 64 | 54.0 | 54.0 |
FL-77-0532 | FS | 532 | 76.6 | 24 | 35 | 0.23 | 64 | 41 | 41 |
FL-89-0532 | FS | 532 | 89.4 | 32 | 35 | 0.20 | 88.7 | 41 | 41 |
FL-90-0532 | FS | 532 | 89.9 | 21.8 | 30 | 0.17 | 64.4 | 40 | 40 |
FL-115-0532 | FS | 532 | 114.5 | 15.5 | 31 | 0.14 | 105.8 | 41 | 41 |
FL-120-0532 | FS | 532 | 122 | 35 | 35 | 0.14 | 111.6 | 41 | 41 |
